ShG-32
Refractories for steel teeming ladle slide gates
Specification of Ukraine 26.2-00190503-350:2011

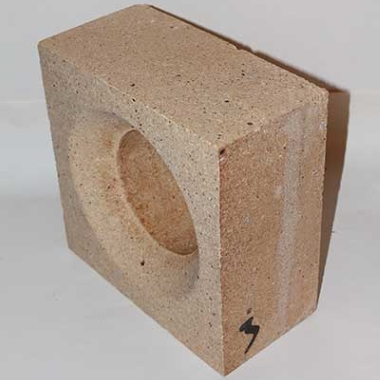

Chamotte pocket block with Al2O3 percentage weight not less than 32%.
The products are produced in accordance with the customer drawing.
The products are laid on wooden pallet, laid with cardboard sheets, wrapped with stretch film and bundled with polypropylene or polyester strip.
Technical requirements
| Parameter description | Value |
|---|---|
| Al2O3, % | ≥ 32 |
| Compression ultimate strength, N/mm2, not less than | 15 |
| Interconnected porosity, %, not more than | 23 |
Specification
| Parameter description | Value |
|---|---|
| Type | aluminosilicate |
| Group | chamotte (Al2O3 28-45%) |
| Porosity degree | average dense (Ptot 20-30%) |
| Heat treatment method | burnt |
| Molding process | semidry forming |
| Binding type 1 | with inorganic binders |
| Binding type 2 | ceramic |
| Intended purpose | repair/construction |
| scope of application | for steel teeming ladle slide gates |
| Reference document for product properties | Refractories for steel teeming ladle slide gates Specification of Ukraine 26.2-00190503-350:2011 |
